Yantai xiav nrawm tshuab thiab khoom siv hluav taws xob co., LTD. Tau cog lus rau kev tsim khoom thiab muag Khoom Roj av micro tiller kev pabcuam thoob ntiaj teb cov neeg siv khoom hauv ntau dua 20 lub tebchaws. Txhawm rau muab koj cov roj av zoo micro tiller, Yantai xiav nrawm tshuab thiab khoom siv hluav taws xob Co., Ltd. teeb tsa ntau lawm, tshawb fawb thiab txhim kho, muag hauv ib qho.

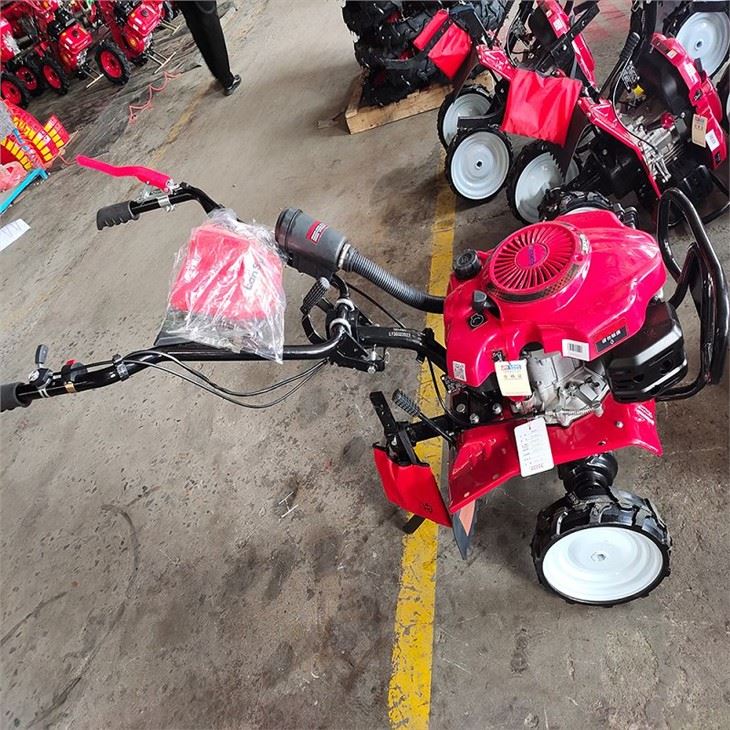

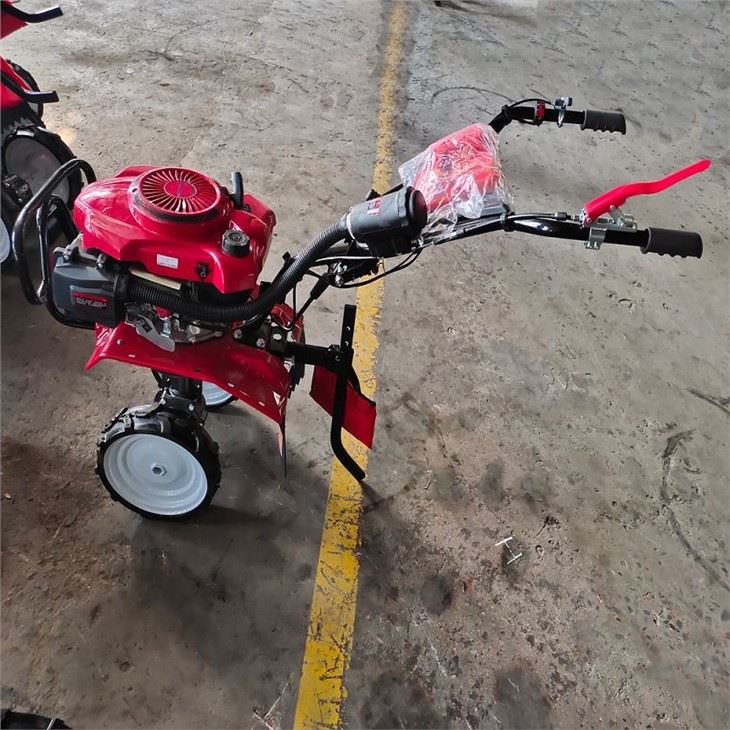

Qauv: LS-510
Qauv: pem hauv ntej -mounted
Qauv cav: 170f roj av cav
Rated zog: 4.0kw
Dimension L*W*H: 1370*730*940mm
Qhov hnyav: 69kg
Hom kev xa mus: teb tillage tus kheej propelled hom
Hom kev sib txuas: kev sib txuas ncaj qha
Riam yob Tig nrawm: Kuv iav: 84.5r/min; II iav: 110r/min
Riam yob Max.turning vojvoog: 175mm
Riam yob tus naj npawb ntawm cov hniav: 24pcs
Qauv ntawm cov hniav tig: 175mm
Hom clutch loj: tensioner
Tilling qhov tob:> 80mm
Kev khiav hauj lwm ceev:> 0.3m/s
Kev tsim khoom: 0.1-0.2h㎡ (hm)
Kev siv roj:<>
Log loj: 350-6
| Pib homMatched zog | 1P70FA, 4.1KW (6.5HP) | Txoj kab uas hla ntawm cov hniav teb | 300 hli |
| Qhov hnyav | 55kg ua | Hom cav | LONCIN Hwj chim |
| Zuag qhia tag nrho qhov ntev | 1500*650*820 (hli) | Zuag qhia tag nrho qhov ntev | 570mm*470mm*700mm |
| (ntev*dav*qhov siab) | (ntev*dav*siab) (PACKAGE) | ||
| Hom cav | Roj av, 4 mob stroke, cua txias | Kev hloov chaw | 196cc/ 224 hli |
| Kev Siv Roj Zoo | 0.8L /700㎡ | Tes tuav | Txo kev co nrog lub caij nplooj ntoo hlav (kho tau) |
| Kev tsim khoom | 700-1000m2/ teev | Max Lub Hwj Huam Tso Tawm HP | 6.5(4.1)/ 3600 |
| (kWm/rpm) | |||
| Tilling qhov tob | 150-280 hli | Clutch | Centrifugal clutch, Qhuav hom |
| Tilling dav | 300-950 hli | Iav hloov | Stepless |
| Kev khiav hauj lwm ceev | 0.5-1.3km/teev | Log loj | 350-6 |
| Tread | 350 hli | Axis puab txoj kab uas hla | 23 hli |
| Teb hniav ceev | RPM150/180 | Ua haujlwm txoj kev | Taug qab qab |
| Carburetor nyem | Nyob nrog | 20GP NPE | 85 teev |
| Pib hluav taws xob | Yeem | 40GP/HQ | 200 poob lawm |
| Fais fab kis | Cov iav tag nrho | Pib txoj kev | Phau ntawv/ Hluav taws xob pib |
| Muaj nuj nqi | Tilling/ Weeding/ Ditching/ Ridging/ | Feem ntau ua haujlwm thaj tsam | Tsev cog khoom/ Vaj/ Paddy teb/ Orchard/ Roob/ Terraced teb/ Tshuaj yej teb/ Zaub teb/ Strawberry teb/ Cassava ... |
| Seeding/Txau/Mulch nteg | |||
| ua |
